XME7100 Reference Manual

[中文]

Development Environment:

Vivado 2021.1 is from Xilinx website

https://www.xilinx.com

WeChat Public Number:

../../_images/vx4.png

●1. Overview

XME7100 is a industrial-grade system module based on Xilinx Zynq-SoC from Microphase Technology. With customizable variants available upon request, customised requirements may be subject to minimum order quantities, please contact our sales team for more information: sales@microphase.cn.
It integrates 4 DDR3 SDRAM chips, with two forming a 32-bit data bus and 8Gbit capacity. The read/write data clock frequency between the PS(Processing System) and the DDR3 is up to 533MHz, and the read/write data clock frequency between the PL(Programmable Logic) and the DDR3 is up to 800MHz, which can satisfy the system’s demand for high-bandwidth data processing. At the same time, a REALTEK RTL8211F Gigabit Ethernet PHY chip is integrated on the core board, which can be easily used by users to realised Ethernet related applications.
The core board features 230 single-ended IOs (configurable as 115 differential pairs), adjustable IO voltages, 8 GTX high-speed RX/TX pairs, and equal-length differential alignments with 50-ohm single-ended and 100-ohm differential impedance.

○Board Layout

../../_images/layout.jpg

○Key Features

  • Xilinx Zynq™ XC7Z100-2FFG900I Soc

  • DDR3: PS 8Gbit DDR3 RAM, 32Bit;
          PL 8Gbit DDR3 RAM, 32Bit

  • Flash: Flash: 512Mbit QSPI Flash, 8GB eMMC Flash.

  • LED: 1 Power LED, 1 FPGA Done LED

  • GTX: 16

  • MIO: 21 MIOs, 3 IO at 3.3V, 18 IOs at 1.8V

  • PL GPIO: 230, Adjustable Voltage, 46 for HP BANK, 184 for HR BANK,
             Can be configured as 115 differential pairs

  • Connectors: 4 x 120pin High Speed B2B Connectors

○Mechanical Spec

../../_images/7100_MECH.png

●2. Function Resources

○FPGA

  • Up to 1GHz MHz dual-core Cortex-A9 processor

  • DDR3L memory controller with 8 DMA channels and 4

  • High Performance AXI3 Slave ports

  • High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO

  • Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C

  • Programmable from JTAG, Quad-SPI flash, and microSD card

  • Programmable logic equivalent to Kintex-7 FPGA

    LUTs: 277,400

    DSP Slices: 2,020

    Logic Cells: 444K

    Flip-Flops: 554,800

    Total Block RAM: 26.5Mb

  • Analog Mixed Signal (AMS) / XADC: 2x 12 bit, MSPS ADCs with up to 17 Differential Inputs

  • Security: AES & SHA 256b Decryption & Authentication for Secure Programmable Logic Configs

○DDR3

The PS of the module uses two 16-bit DDR3 memory chips, with a capacity of 512MB for a single chip and 1GB for two chips.

Signal Name PIN Number Signal Name PIN Number
PS_DDR3_A0 L25 PS_DDR3_D9 A27
PS_DDR3_A1 K26 PS_DDR3_D10 A30
PS_DDR3_A2 L27 PS_DDR3_D11 A28
PS_DDR3_A3 G25 PS_DDR3_D12 C28
PS_DDR3_A4 J26 PS_DDR3_D13 D30
PS_DDR3_A5 G24 PS_DDR3_D14 D28
PS_DDR3_A6 H26 PS_DDR3_D15 D29
PS_DDR3_A7 K22 PS_DDR3_D16 H27
PS_DDR3_A8 F27 PS_DDR3_D17 G27
PS_DDR3_A9 J23 PS_DDR3_D18 H28
PS_DDR3_A10 G26 PS_DDR3_D19 E28
PS_DDR3_A11 H24 PS_DDR3_D20 E30
PS_DDR3_A12 K23 PS_DDR3_D21 F28
PS_DDR3_A13 H23 PS_DDR3_D22 G30
PS_DDR3_A14 J24 PS_DDR3_D23 F30
PS_DDR3_BA0 M27 PS_DDR3_D24 J29
PS_DDR3_BA1 M26 PS_DDR3_D25 K27
PS_DDR3_BA2 M25 PS_DDR3_D26 J30
PS_DDR3_NCAS M24 PS_DDR3_D27 J28
PS_DDR3_CKE M22 PS_DDR3_D28 K30
PS_DDR3_CLK_N J25 PS_DDR3_D29 M29
PS_DDR3_CLK_P K25 PS_DDR3_D30 L30
PS_DDR3_NCS N22 PS_DDR3_D31 M30
PS_DDR3_DM0 C27 PS_DDR3_DQS_N0 B26
PS_DDR3_DM1 B30 PS_DDR3_DQS_N1 B29
PS_DDR3_DM2 H29 PS_DDR3_DQS_N2 F29
PS_DDR3_DM3 K28 PS_DDR3_DQS_N3 L29
PS_DDR3_D0 A25 PS_DDR3_DQS_P0 C26
PS_DDR3_D1 E25 PS_DDR3_DQS_P1 C29
PS_DDR3_D2 B27 PS_DDR3_DQS_P2 G29
PS_DDR3_D3 D25 PS_DDR3_DQS_P3 L28
PS_DDR3_D4 B25 PS_DDR3_NRST F25
PS_DDR3_D5 E26 PS_DDR3_ODT L23
PS_DDR3_D6 D26 PS_DDR3_NRAS N24
PS_DDR3_D7 E27 PS_DDR3_NWE N23
PS_DDR3_D8 A29

The PL of the module uses two 16-bit DDR3 memory chips, with a capacity of 512MB for a single chip and 1GB for two chips.

Signal Name PIN Number Signal Name PIN Number
PL_DDR3_A0 L10 PL_DDR3_D9 F2
PL_DDR3_A1 E8 PL_DDR3_D10 H4
PL_DDR3_A2 J10 PL_DDR3_D11 G6
PL_DDR3_A3 K10 PL_DDR3_D12 H3
PL_DDR3_A4 F8 PL_DDR3_D13 G2
PL_DDR3_A5 J11 PL_DDR3_D14 H6
PL_DDR3_A6 E10 PL_DDR3_D15 G1
PL_DDR3_A7 L12 PL_DDR3_D16 E2
PL_DDR3_A8 E11 PL_DDR3_D17 F4
PL_DDR3_A9 K11 PL_DDR3_D18 D4
PL_DDR3_A10 E7 PL_DDR3_D19 F5
PL_DDR3_A11 G11 PL_DDR3_D20 E3
PL_DDR3_A12 J8 PL_DDR3_D21 F3
PL_DDR3_A13 H12 PL_DDR3_D22 D3
PL_DDR3_A14 D11 PL_DDR3_D23 E5
PL_DDR3_BA0 J9 PL_DDR3_D24 C1
PL_DDR3_BA1 H8 PL_DDR3_D25 B1
PL_DDR3_BA2 L9 PL_DDR3_D26 B4
PL_DDR3_NCAS G7 PL_DDR3_D27 A3
PL_DDR3_CKE F7 PL_DDR3_D28 C2
PL_DDR3_CLK_N D8 PL_DDR3_D29 B5
PL_DDR3_CLK_P D9 PL_DDR3_D30 C4
PL_DDR3_NCS K8 PL_DDR3_D31 B2
PL_DDR3_DM0 K5 PL_DDR3_DQS_N0 K2
PL_DDR3_DM1 G5 PL_DDR3_DQS_N1 H1
PL_DDR3_DM2 E1 PL_DDR3_DQS_N2 D5
PL_DDR3_DM3 A2 PL_DDR3_DQS_N3 A4
PL_DDR3_D0 J3 PL_DDR3_DQS_P0 K3
PL_DDR3_D1 K6 PL_DDR3_DQS_P1 J1
PL_DDR3_D2 J5 PL_DDR3_DQS_P2 E6
PL_DDR3_D3 L1 PL_DDR3_DQS_P3 A5
PL_DDR3_D4 K1 PL_DDR3_NRST H11
PL_DDR3_D5 L3 PL_DDR3_ODT H7
PL_DDR3_D6 J4 PL_DDR3_NRAS D6
PL_DDR3_D7 L2 PL_DDR3_NWE L8
PL_DDR3_D8 H2

○Giga ETH

The 88E1512 chip supports 10/100/1000M network transfer rates and communicates with the MAC layer of the Zynq7000 PS system via the RGMII interface. It features MDI/MDX crossover, auto-negotiation for multiple speeds, and master/slave configuration. Additionally, it supports the MDIO bus for PHY register management and provides advanced energy efficiency with IEEE 802.3az Energy-Efficient Ethernet (EEE). The 88E1512 is optimized for low power consumption and offers robust performance for high-speed network applications.

○eMMC

The module features an 8GB eMMC interface (PS_SDIO1) that can be utilised for system files or other data file storage. It can also be employed as a secondary boot device in conjunction with the QSPI flash for system boot. The interface is PS BANK501 MIO[46-51].

Signal Name Pin Number / Pin Name
MMC_DATA0 F20 / PS_MIO46_501
MMC_CMD A18 / PS_MIO47_501
MMC_CLK C19 / PS_MIO48_501
MMC_DATA1 D18 / PS_MIO49_501
MMC_DATA2 A19 / PS_MIO50_501
MMC_DATA3 F19 / PS_MIO51_501

○JTAG

The JTAG signal link of the XME7100 is connected to the expansion connector.

Signal JM1 Pin Number Explain
FPGA_TCK Pin23 Input (3.3V)
FPGA_TDI Pin25 Input (3.3V)
FPGA_TDO Pin27 Output (3.3V)
FPGA_TMS Pin29 Output (3.3V)

○Boot Config

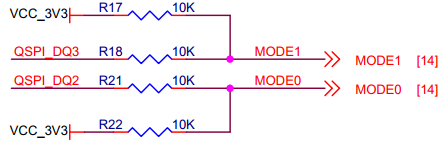

ZYNQ startup mode by configuring the MODE1(JM1 PIN19), MODE0(JM1 PIN17), the core module ZYNQ configuration schematic is shown below.

../../_images/boot1.png

Mode MODE1(JM1 PIN19) MODE0(JM1 PIN17)
JTAG Connection to GND Connection to GND
QSPI NC Connection to GND
SD NC NC

○Quad-SPI Flash

Two-board 256M Quad-SPI Flash memory W25Q256FVEI is used to store initial FPGA configuration and user’s application as well as data.

Position Model Capacity Factory
U4 W25Q256FVEI 256 Byte Winbond
U5 W25Q256FVEI 256 Byte Winbond

○Clock

The XME7100 core board provides a 33.3Mhz active clock for the PS system, a 200Mhz active clock for the PL system and a 50MHz active clock as local clock.

Position Signal Name Frequency Pin Number
U2 PS_CLK_33d3 33.333Mhz B24
U6 SYS_CLK_P 200Mhz C8
U6 SYS_CLK_N 200Mhz C7
U7 CLK_50M 50Mhz AD18

○Power

Please note that the power input of XME7100 is +5V. We recommend using a 5V/2A power supply.

The module requires a 5V input, and it automatically follows a cascading power-up sequence:1.0V -> 1.8V -> 1.5V -> 3.3V. The 3.3V output will be powered up last, and at the same time, it will provide the PG signal of system power status.

○LED

The XME7100 board provides two LEDs, the power indicator and the FPGA configuration status light.

LED ZYNQ Pin Note
D4 -- Power LED
D1 AA9 FPGA configuration status LED, lit after successful FPGA configuration

○Expansion Ports

The XME7100 uses four sets of connectors, JM1, JM2, JM3 and JM4, for the FPGA IO signals and Ethernet interface.
4 x AXK5A2137YG, 120Pin, 0.5mm Pitch

Core Board Connector Models Based Board Connector Models Manufacturers Mated height
AXK5A2137YG AXK6A2337YG Panasonic 3mm

FPGA Bank, Number of IOs vs. B2B Connector Table

FPGA Bank B2B Connector IO Number Voltage Explain
Bank500 JM1 3 3.3V
BANK501 JM1 18 1.8V
Bank35 JM1 46 Adjustable 46 single-ended, can be mated to 23 differential pairs
Bank12 JM2 46 Adjustable 46 single-ended, can be mated to 23 differential pairs
Bank13 JM2 46 Adjustable 46 single-ended, can be mated to 23 differential pairs
Bank10 JM3 46 Adjustable 46 single-ended, can be mated to 23 differential pairs
Bank11 JM3 46 Adjustable 46 single-ended, can be mated to 23 differential pairs
BANK109 JM4 20 - 2 pairs of CLK, 4 pairs of TX and RX
BANK110 JM4 20 - 2 pairs of CLK, 4 pairs of TX and RX
BANK111 JM4 20 - 2 pairs of CLK, 4 pairs of TX and RX
BANK112 JM4 20 - 2 pairs of CLK, 4 pairs of TX and RX

Description:

  1. Bank35 IO level depends on JM1 Pin117&119 voltage input, input range 1.2V-1.8V.

  2. Bank12 IO level depends on JM2 Pin117&119 voltage input, input range 1.2V-3.3V.

  3. Bank13 IO level depends on JM2 Pin57&59 voltage input, input range 1.2V-3.3V.

  4. Bank10 IO level depends on JM3 Pin117&119 voltage input, input range 1.2V-3.3V.

  5. Bank11 IO level depends on JM3 Pin57&59 voltage input, input range 1.2V-3.3V.

  6. MIO8,MIO14 and MIO15 (JM1 Pin20,55,57), JTAG,RESET (JM1 Pin18, Pin23-Pin29) level is 3.3V.

  7. MIO28~MIO45 (JM1 Pin24,26,28···-Pin108) level is 1.8V.

  8. Please refer to the ‘XME7100_Pinout Table’ for detailed pin definitions of the XME7100.
