XME0715 Reference Manual
Development Environment:
Vivado 2018.3 is from Xilinx website
WeChat Public Number:
●1. Overview
XME0715 is a industrial-grade system module based on Xilinx Zynq-SoC from Microphase Technology.
It integrates 1GB DDR3 RAM, 32MB SPI flash, 8GB eMMC flash, Gigabit Ethernet PHY transceiver, USB PHY transceiver, and a large number of configurable I/Os expandable via high-speed connectors. With a size of only 5 x 6cm, the module is small and flexible enough to be used in a wide range of applications.

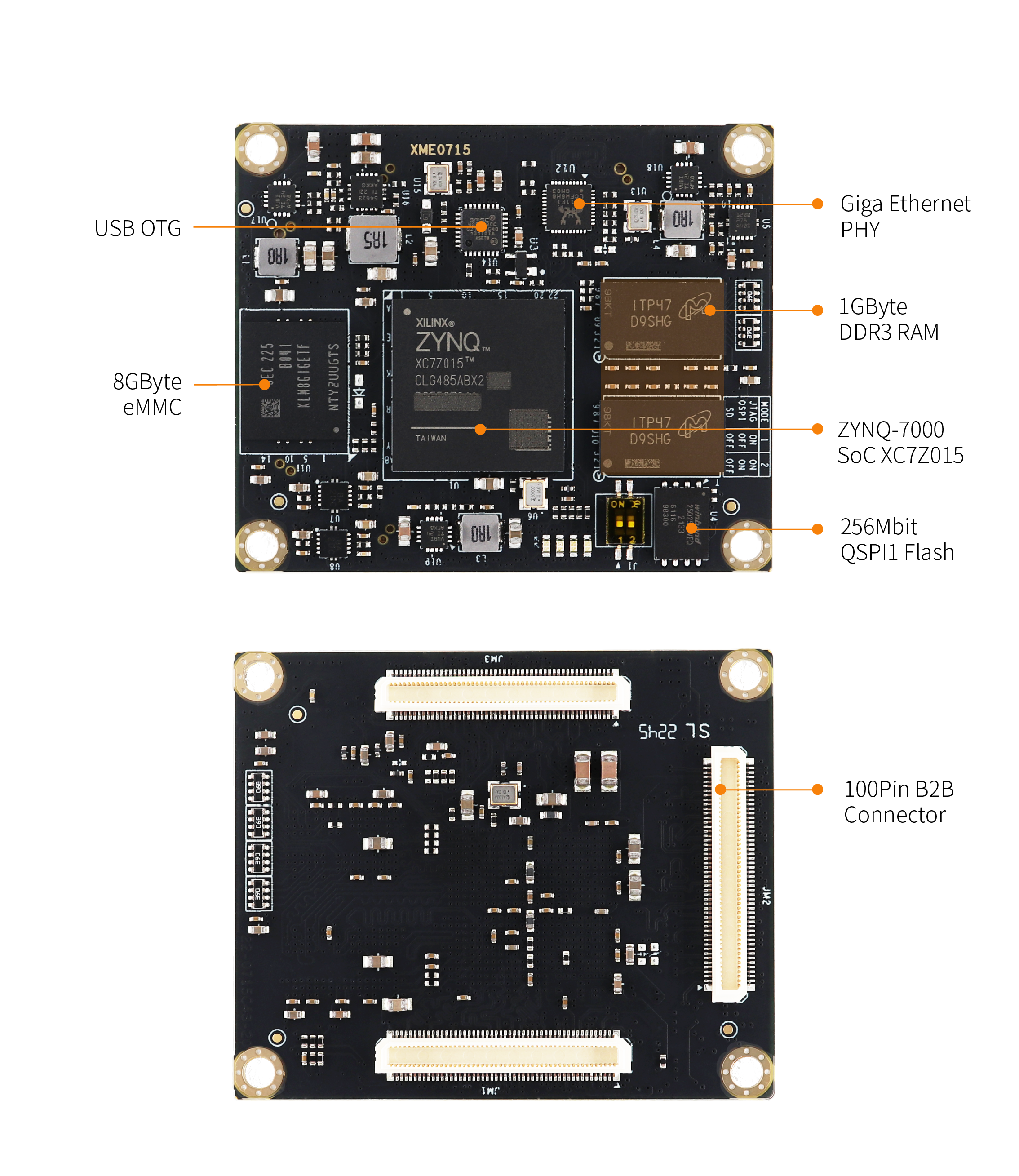

○Board Layout
○Key Features
Xilinx XC7Z015-2CLG485I
DDR3: 1GB DDR3 RAM
Flash: 256Mbit QSPI Flash, 8GB eMMC Flash.
LED: 1 Power LED, 1 FPGA Done LED;
2 user’s LED, 1 PS(Processing System ) control, 1 PL(Programmable Logic) control.PL GPIO: 142, 96 GPIOs are Adjustable Voltage,
Can be configured as 71 differential pairsGiga ETH: 10/100/1000M Adaptive.
USB Host: USB2.0 PHY(USB3320)
CLOCK: 1 33.33Mhz active crystal oscillator provides a stable clock for the PS system.
1 50Mhz active crystal oscillator provides additional clocks for the PL logic.
○Block diagram

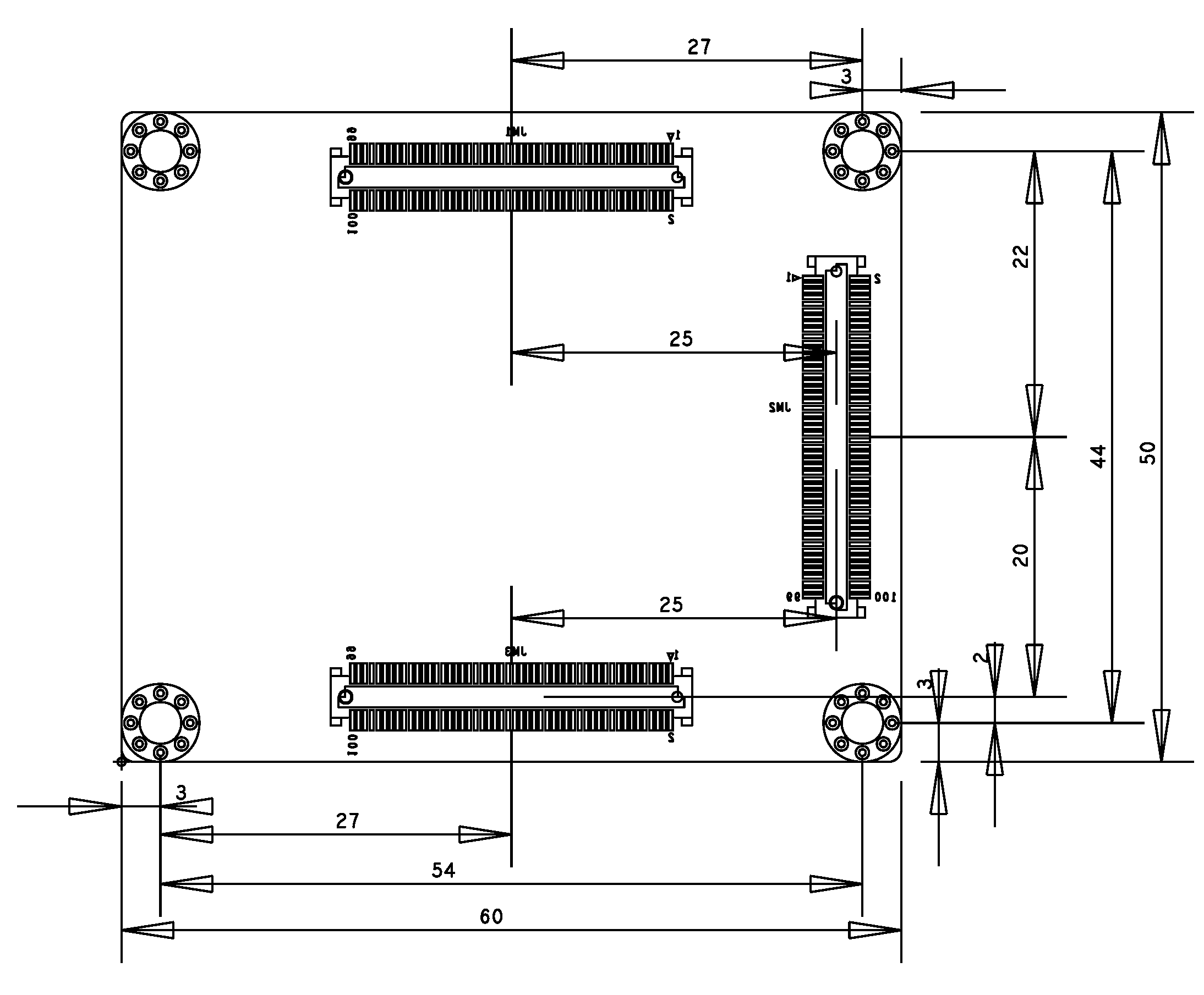

○Mechanical Spec
●2. Function Resources
○FPGA
766 MHz dual-core Cortex-A9 processor
DDR3L memory controller with 8 DMA channels and 4
High Performance AXI3 Slave ports
High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C
Programmable from JTAG, Quad-SPI flash, and microSD card
Programmable logic equivalent to Artix-7 FPGA
LUTs: 46,200
DSP Slices: 160
Logic Cells: 74K
Flip-Flops: 92,400
Total Block RAM: 3.3MbAnalog Mixed Signal (AMS) / XADC: 2x 12 bit, MSPS ADCs with up to 17 Differential Inputs
Security: AES & SHA 256b Decryption & Authentication for Secure Programmable Logic Config
○DDR3
The module uses two 16-bit DDR3 memory chips to form a 32-bit bit-width, 1GB capacity.
| Signal Name | PIN Number | Signal Name | PIN Number |
|---|---|---|---|
| PS_DDR3_A0 | M19 | PS_DDR3_D9 | G22 |
| PS_DDR3_A1 | M18 | PS_DDR3_D10 | L22 |
| PS_DDR3_A2 | K19 | PS_DDR3_D11 | L21 |
| PS_DDR3_A3 | L19 | PS_DDR3_D12 | L20 |
| PS_DDR3_A4 | K17 | PS_DDR3_D13 | K22 |
| PS_DDR3_A5 | K18 | PS_DDR3_D14 | J22 |
| PS_DDR3_A6 | J16 | PS_DDR3_D15 | K20 |
| PS_DDR3_A7 | J17 | PS_DDR3_D16 | M22 |
| PS_DDR3_A8 | J18 | PS_DDR3_D17 | T20 |
| PS_DDR3_A9 | H18 | PS_DDR3_D18 | N20 |
| PS_DDR3_A10 | J20 | PS_DDR3_D19 | T22 |
| PS_DDR3_A11 | G18 | PS_DDR3_D20 | R20 |
| PS_DDR3_A12 | H19 | PS_DDR3_D21 | T21 |
| PS_DDR3_A13 | F19 | PS_DDR3_D22 | M21 |
| PS_DDR3_A14 | G19 | PS_DDR3_D23 | R22 |
| PS_DDR3_BA0 | L16 | PS_DDR3_D24 | Y20 |
| PS_DDR3_BA1 | L17 | PS_DDR3_D25 | U22 |
| PS_DDR3_BA2 | M17 | PS_DDR3_D26 | AA22 |
| PS_DDR3_NCAS | P20 | PS_DDR3_D27 | U21 |
| PS_DDR3_CKE | T19 | PS_DDR3_D28 | W22 |
| PS_DDR3_CLK_N | N18 | PS_DDR3_D29 | W20 |
| PS_DDR3_CLK_P | N19 | PS_DDR3_D30 | V20 |
| PS_DDR3_NCS | P17 | PS_DDR3_D31 | Y22 |
| PS_DDR3_DM0 | B22 | PS_DDR3_DQS_N0 | D21 |
| PS_DDR3_DM1 | H20 | PS_DDR3_DQS_N1 | J21 |
| PS_DDR3_DM2 | P22 | PS_DDR3_DQS_N2 | P21 |
| PS_DDR3_DM3 | AA21 | PS_DDR3_DQS_N3 | W21 |
| PS_DDR3_D0 | D22 | PS_DDR3_DQS_P0 | C21 |
| PS_DDR3_D1 | C20 | PS_DDR3_DQS_P1 | H21 |
| PS_DDR3_D2 | B21 | PS_DDR3_DQS_P2 | N21 |
| PS_DDR3_D3 | D20 | PS_DDR3_DQS_P3 | V21 |
| PS_DDR3_D4 | E20 | PS_DDR3_NRST | F20 |
| PS_DDR3_D5 | E22 | PS_DDR3_ODT | P18 |
| PS_DDR3_D6 | F21 | PS_DDR3_NRAS | R18 |
| PS_DDR3_D7 | F22 | PS_DDR3_NWE | R19 |
| PS_DDR3_D8 | G21 |
○Giga ETH
The RTL8211F chip supports 10/100/1000M network transfer rate and communicates with the MAC layer of the Zynq7000 PS system via the RGMII interface. It supports MDI/MDX adaptation, multiple speed adaptation, master/slave adaptation and MDIO bus support for PHY register management.
○USB Host
The USB2.0 transceiver on-board is the USB3320C-EZK, which supports the ULPI standard interface. It’s connected with ZYNQ’s bus interface to enable high-speed USB2.0 Host mode data communications.
○USB UART
A USB to UART chip, the CH340, is provided for user connection to the host PC.
| Signal Name | Pin Name | Pin Number | Explain |
|---|---|---|---|
| UART_TX | PS_MIO15_500 | E17 | UART data output |
| UART_RX | PS_MIO14_500 | B17 | UART data input |
○eMMC
The module includes an 8GB eMMC interface (PS_SDIO1) for system files or data storage. It can also serve as a secondary boot device alongside the QSPI flash. The interface is PS BANK501 MIO[46-51].
| Signal Name | Pin Name | Pin Number |
|---|---|---|
| PS_MIO48_501 | MMC_CLK | D12 |
| PS_MIO47_501 | MMC_CMD | B13 |
| PS_MIO46_501 | MMC_DATA0 | D11 |
| PS_MIO49_501 | MMC_DATA1 | C9 |
| PS_MIO50_501 | MMC_DATA2 | D10 |
| PS_MIO51_501 | MMC_DATA3 | C13 |
○JTAG
The JTAG signal link of the XME0715 is connected to the expansion connector.
| Signal | JM3 Pin Number | Explain |
|---|---|---|
| VCC_3V3 | 13 | Module voltage output, JTAG reference voltage |
| FPGA_TDI | 21 | Input (3.3V) |
| FPGA_TDO | 17 | Output (3.3V) |
| FPGA_TCK | 15 | Input (3.3V) |
| FPGA_TMS | 23 | Input (3.3V) |
| GND | 19 | Connect to the GND signal on the module |
○Boot Config
According to the switch (SW4) on the SoM, configure the ZYNQ boot mode.
○Quad-SPI Flash
On-board 256M Quad-SPI Flash memory W25Q256FVEI is used to store initial FPGA configuration and user’s application as well as data.
| Position | Model | Capacity | Factory |
|---|---|---|---|
| U4 | W25Q256FVEI | 256 Byte | Winbond |
○Clock
The XME0715 core board provides a 33.3Mhz active clock for the PS system and a 50Mhz active clock for the PL system.
| Position | Signal Name | Frequency | Pin Number/Pin Name |
|---|---|---|---|
| U2 | PS_CLK_33d3 | 33.333Mhz | PS_CLK_500 |
| U6 | PL_CLK_50M | 50Mhz | Y14 |
○Power
The XME0715 supports a wide range of power input (5V~15V), with a recommended design power input of +12V.
The module powers up in a cascading sequence: 1.0V- > 1.8V -> 1.5V- > 3.3V. The 3.3V output will be powered up last, and at the same time, it will provide the PG signal of system power status.
○LED
The XME0715 board includes four LEDs: a power indicator, an FPGA configuration status light, a PL-controlled user LED, and a PS-controlled user LED.
The LED signals are described in the following table.
| LED | FPGA Pin/ FPGA Name |
Note |
|---|---|---|
| D4 | -- | Power LED |
| D1 | T10 | FPGA configuration status LED, lit after successful FPGA configuration |
| D2 | G17/PS_MIO0_500 | LED on when FPGA PS_MIO0_500 output is low |
| D3 | T16 | LED on when FPGA T16 output is low |
○Expansion Ports
The XME0715 uses three sets of connectors, JM1, JM2 and JM3, for the FPGA IO signals and Ethernet interface.
3 x AXK600337YG, 100Pin, 0.5mm Pitch
| Core Board Connector Models | Based Board Connector Models | Manufacturers | Mated height |
|---|---|---|---|
| AXK600337YG | AXK500137YG | Panasonic | 3mm |
Description:
Bank34 IO level depends on JM1 Pin11,13 voltage input, input range 1.2V-3.3V.
Bank35 IO level depends on JM2 Pin91,93 voltage input, input range 1.2V-3.3V.
SD Signal (JM3 Pin73,75,77-Pin85) voltage is 1.8V.
MIO9-MIO13, UART, JTAG, RESET level is 3.3V.
Please refer to the ‘XME0715_Pinout_Table_R20’ for detailed pin definitions of the XME0715 and its carrier board.
