XME7035 Reference Manual

[中文]

Development Environment:

Vivado 2021.1 is from Xilinx website

https://www.xilinx.com

WeChat Public Number:

●1. Overview

XME7035 is a industrial-grade system module based on Xilinx Zynq-SoC from Microphase Technology. With customizable variants available upon request, customised requirements may be subject to minimum order quantities, please contact our sales team for more information: sales@microphase.cn.
It integrates 4 DDR3 SDRAM chips, with two forming a 32-bit data bus and 8Gbit capacity. The read/write data clock frequency between the PS(Processing System) and the DDR3 is up to 533MHz, and the read/write data clock frequency between the PL(Programmable Logic) and the DDR3 is up to 800MHz, which can satisfy the system’s demand for high-bandwidth data processing. At the same time, a REALTEK RTL8211F Gigabit Ethernet PHY chip is integrated on the core board, which can be easily used by users to realised Ethernet related applications.
The core board features 138 single-ended IOs (configurable as 69 differential pairs), adjustable IO voltages, 8 GTX high-speed RX/TX pairs, and equal-length differential alignments with 50-ohm single-ended and 100-ohm differential impedance.

○Board Layout

○Key Features

• Xilinx Zynq™ XC7Z035-FFG676 Soc

• DDR3: PS 8Gbit DDR3 RAM, 32Bit;
        PL 8Gbit DDR3 RAM, 32Bit

• Flash: Flash: 256Mbit QSPI Flash, 8GB eMMC Flash.

• LED: 1 Power LED, 1 FPGA Done LED;
       2 users LED,1 PS control, 1 PL control.

• GTX: 8

• MIO: 21 MIOs, 3 IO at 3.3V, 18 IOs at 1.8V

• PL GPIO: 138, Adjustable Voltage, 46 for HP BANK, 92 for HR BANK,
           Can be configured as 69 differential pairs

• Connectors: 3 x 120pin High Speed B2B Connectors

○Block diagram

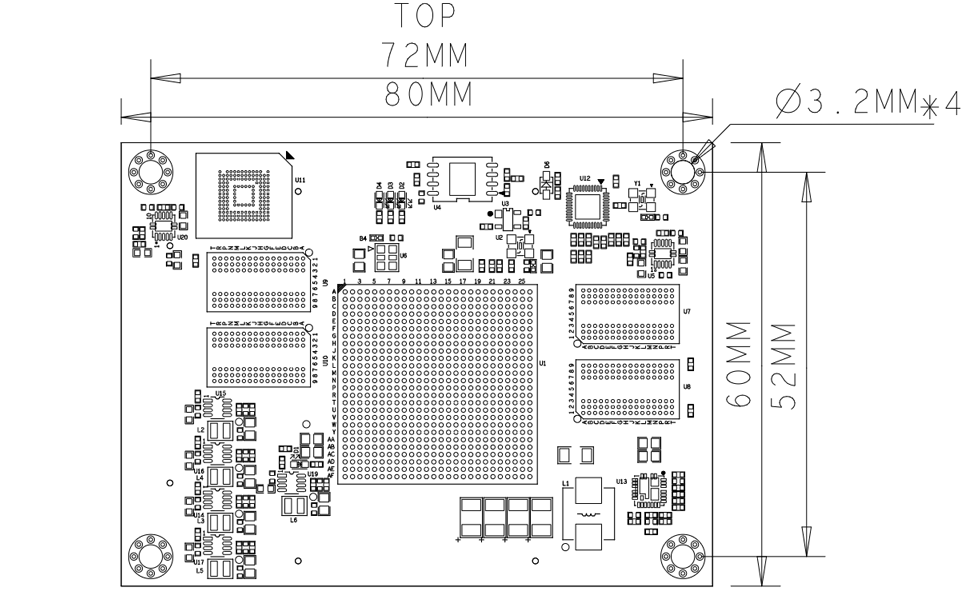

○Mechanical Spec

●2. Function Resources

○FPGA

• Up to 1GHz MHz dual-core Cortex-A9 processor

• DDR3L memory controller with 8 DMA channels and 4

• High Performance AXI3 Slave ports

• High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO

• Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C

• Programmable from JTAG, Quad-SPI flash, and microSD card

• Programmable logic equivalent to Kintex-7 FPGA

  LUTs: 171,900

  DSP Slices: 900

  Logic Cells: 275K

  Flip-Flops: 343,800

  Total Block RAM: 17.6Mb

• Analog Mixed Signal (AMS) / XADC: 2x 12 bit, MSPS ADCs with up to 17 Differential Inputs

• Security: AES & SHA 256b Decryption & Authentication for Secure Programmable Logic Configs

○DDR3

The PS of the module uses two 16-bit DDR3 memory chips, with a capacity of 512MB for a single chip and 1GB for two chips.

Signal Name	PIN Number	Signal Name	PIN Number
PS_DDR3_A0	K22	PS_DDR3_D9	L23
PS_DDR3_A1	K20	PS_DDR3_D10	M26
PS_DDR3_A2	N21	PS_DDR3_D11	K23
PS_DDR3_A3	L22	PS_DDR3_D12	M25
PS_DDR3_A4	M20	PS_DDR3_D13	N24
PS_DDR3_A5	N22	PS_DDR3_D14	M24
PS_DDR3_A6	L20	PS_DDR3_D15	N23
PS_DDR3_A7	J21	PS_DDR3_D16	R26
PS_DDR3_A8	T20	PS_DDR3_D17	P24
PS_DDR3_A9	U20	PS_DDR3_D18	N26
PS_DDR3_A10	M22	PS_DDR3_D19	P23
PS_DDR3_A11	H21	PS_DDR3_D20	T24
PS_DDR3_A12	P20	PS_DDR3_D21	T25
PS_DDR3_A13	J20	PS_DDR3_D22	T23
PS_DDR3_A14	R20	PS_DDR3_D23	R23
PS_DDR3_BA0	U22	PS_DDR3_D24	V24
PS_DDR3_BA1	T22	PS_DDR3_D25	U26
PS_DDR3_BA2	R22	PS_DDR3_D26	U24
PS_DDR3_NCAS	Y23	PS_DDR3_D27	U25
PS_DDR3_CKE	U21	PS_DDR3_D28	W26
PS_DDR3_CLK_N	P21	PS_DDR3_D29	Y25
PS_DDR3_CLK_P	R21	PS_DDR3_D30	Y26
PS_DDR3_NCS	Y21	PS_DDR3_D31	W23
PS_DDR3_DM0	G24	PS_DDR3_DQS_N0	G25
PS_DDR3_DM1	K25	PS_DDR3_DQS_N1	L25
PS_DDR3_DM2	P26	PS_DDR3_DQS_N2	R25
PS_DDR3_DM3	V26	PS_DDR3_DQS_N3	W25
PS_DDR3_D0	J26	PS_DDR3_DQS_P0	H24
PS_DDR3_D1	F25	PS_DDR3_DQS_P1	L24
PS_DDR3_D2	J25	PS_DDR3_DQS_P2	P25
PS_DDR3_D3	G26	PS_DDR3_DQS_P3	W24
PS_DDR3_D4	H26	PS_DDR3_NRST	H22
PS_DDR3_D5	H23	PS_DDR3_ODT	Y22
PS_DDR3_D6	J24	PS_DDR3_NRAS	V23
PS_DDR3_D7	J23	PS_DDR3_nWE	V22
PS_DDR3_D8	K26

The PL of the module uses two 16-bit DDR3 memory chips, with a capacity of 512MB for a single chip and 1GB for two chips.

Signal Name	PIN Number	Signal Name	PIN Number
PL_DDR3_A0	E5	PL_DDR3_D9	J1
PL_DDR3_A1	A8	PL_DDR3_D10	H1
PL_DDR3_A2	E6	PL_DDR3_D11	H3
PL_DDR3_A3	B6	PL_DDR3_D12	H4
PL_DDR3_A4	A7	PL_DDR3_D13	G1
PL_DDR3_A5	A3	PL_DDR3_D14	L3
PL_DDR3_A6	B7	PL_DDR3_D15	H2
PL_DDR3_A7	B4	PL_DDR3_D16	M4
PL_DDR3_A8	A9	PL_DDR3_D17	L4
PL_DDR3_A9	E8	PL_DDR3_D18	N4
PL_DDR3_A10	D9	PL_DDR3_D19	L5
PL_DDR3_A11	A10	PL_DDR3_D20	M2
PL_DDR3_A12	C2	PL_DDR3_D21	L2
PL_DDR3_A13	B10	PL_DDR3_D22	M6
PL_DDR3_A14	D8	PL_DDR3_D23	M5
PL_DDR3_BA0	B1	PL_DDR3_D24	J5
PL_DDR3_BA1	C6	PL_DDR3_D25	J6
PL_DDR3_BA2	F5	PL_DDR3_D26	N6
PL_DDR3_NCAS	C9	PL_DDR3_D27	M7
PL_DDR3_CKE	F9	PL_DDR3_D28	K6
PL_DDR3_CLK_N	F7	PL_DDR3_D29	N7
PL_DDR3_CLK_P	G7	PL_DDR3_D30	K8
PL_DDR3_NCS	A4	PL_DDR3_D31	K5
PL_DDR3_DM0	E2	PL_DDR3_DQS_N0	F2
PL_DDR3_DM1	J4	PL_DDR3_DQS_N1	K1
PL_DDR3_DM2	N1	PL_DDR3_DQS_N2	N2
PL_DDR3_DM3	K7	PL_DDR3_DQS_N3	L8
PL_DDR3_D0	E1	PL_DDR3_DQS_P0	G2
PL_DDR3_D1	G4	PL_DDR3_DQS_P1	K2
PL_DDR3_D2	F4	PL_DDR3_DQS_P2	N3
PL_DDR3_D3	F3	PL_DDR3_DQS_P3	M8
PL_DDR3_D4	D4	PL_DDR3_NRST	B5
PL_DDR3_D5	C1	PL_DDR3_ODT	A5
PL_DDR3_D6	D1	PL_DDR3_NRAS	B9
PL_DDR3_D7	D3	PL_DDR3_NWE	B2
PL_DDR3_D8	K3

○Giga ETH

The RTL8211F chip supports 10/100/1000M network transfer rate and communicates with the MAC layer of the Zynq7000 PS system via the RGMII interface. It supports MDI/MDX adaptation, multiple speed adaptation, master/slave adaptation and MDIO bus support for PHY register management.

○eMMC

The module features an 8GB eMMC interface (PS_SDIO0) that can be utilised for system files or other data file storage. It can also be employed as a secondary boot device in conjunction with the QSPI flash for system boot. The interface is PS BANK501 MIO[46-51].

Signal Name	Pin Number
MMC_CLK	B21
MMC_CMD	B19
MMC_DATA0	E17
MMC_DATA1	A18
MMC_DATA2	B22
MMC_DATA3	B20

○JTAG

The JTAG signal link of the XME7035 is connected to the expansion connector.

Signal	JM1 Pin Number	Explain
FPGA_TCK	Pin23	Input (3.3V)
FPGA_TDI	Pin25	Input (3.3V)
FPGA_TDO	Pin27	Output (3.3V)
FPGA_TMS	Pin29	Output (3.3V)

○Boot Config

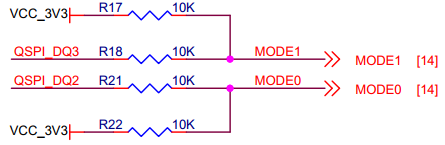

ZYNQ startup mode by configuring the MODE1(JM1 PIN19), MODE0(JM1 PIN17),the core module ZYNQ configuration schematic is shown below.

Mode	MODE1(JM1 PIN19)	MODE0(JM1 PIN17)
JTAG	Connection to GND	Connection to GND
QSPI	NC	Connection to GND
SD	NC	NC

○Quad-SPI Flash

On-board 256M Quad-SPI Flash memory W25Q256FVEI is used to store initial FPGA configuration and user’s application as well as data.

Position	Model	Capacity	Factory
U4	W25Q256FVEI	256 Byte	Winbond

○Clock

The XME7035 core board provides a 33.3Mhz active clock for the PS system and a 200Mhz active clock for the PL system.

Position	Signal Name	Frequency	Pin Number
U2	PS_CLK_33d3	33.333Mhz	B24
U6	SYS_CLK_P	200Mhz	C8
U6	SYS_CLK_N	200Mhz	C7

○Power

Please note that the power input of XME7035 is +5V. We recommend using a 5V/2A power supply.

The module requires a 5V input, and it automatically follows a cascading power-up sequence:1.0V -> 1.8V -> 1.5V -> 3.3V. The 3.3V output will be powered up last, and at the same time, it will provide the PG signal of system power status.

○LED

The XME7035 board provides four LEDs, the power indicator, the FPGA configuration status light, the PL-controlled user LED, and the PS user-controlled LED.
The LED signals are described in the following table.

LED	ZYNQ Pin	Note
D4	--	Power LED
D1	W9	FPGA configuration status LED, lit after successful FPGA configuration
D2	E26	LED on when FPGA E26 (MIO0) output is low
D3	H16	LED on when FPGA H16 output is low

○Expansion Ports

The XME7035 uses three sets of connectors, JM1, JM3 and JM4, for the FPGA IO signals and Ethernet interface.
3 x AXK5A2137YG, 120Pin, 0.5mm Pitch

Core Board Connector Models	Based Board Connector Models	Manufacturers	Mated height
AXK5A2137YG	AXK6A2337YG	Panasonic	3mm

FPGA Bank, Number of IOs vs. B2B Connector Table

FPGA Bank	B2B Connector	IO Number	Voltage	Explain
Bank500	JM1	3	3.3V
BANK501	JM1	18	1.8V
Bank35	JM1	44	Adjustable	44 single-ended, can be mated to 22 differential pairs
Bank12	JM3	44	Adjustable	44 single-ended, can be mated to 22 differential pairs
Bank13	JM3	44	Adjustable	44 single-ended, can be mated to 22 differential pairs
BANK111	JM4	20	-	2 pairs of CLK, 4 pairs of TX and RX
BANK112	JM4	20	-	2 pairs of CLK, 4 pairs of TX and RX

Description:

1. Bank35 IO level depends on JM1 Pin29&30 voltage input, input range 1.2V-1.8V.

2. Bank12 IO level depends on JM3 Pin29&30 voltage input, input range 1.2V-3.3V.

3. Bank13 IO level depends on JM3 Pin89&90 voltage input, input range 1.2V-3.3V.

4. MIO8,MIO14 and MIO15 (JM1 Pin20,55,57), JTAG,RESET (JM1 Pin18, Pin23-Pin29) level is 3.3V.

5. MIO28~MIO45 (JM1 Pin24,26,28···-Pin108) level is 1.8V.

6. Please refer to the ‘XME7035_Pinout Table’ for detailed pin definitions of the XME7035.
